英文：For vehicle air climite system. They can be used on exhaust circuit, suction circuit or gas-liquid two-phase circuit, automatic on-off control of refrigerant and selective on-off of multiple circuits, so as to accomplish the switching and adjustment of refrigeration parts and accomplish the automatic control of multiple circuits.
|
|
|
|
|

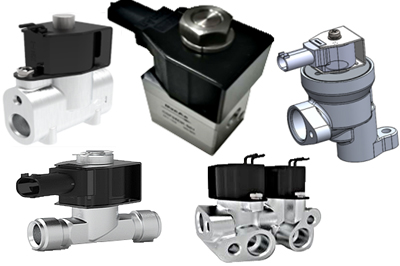

CDF-A（異型鍛件） CDF-A（Special-shaped forging） | CDF-B（普通方形） CDF-B（Ordinary square） | CDF-C(螺紋接口) CDF-C(Threaded interface) | CSF10 (三通電磁閥) CSF10 (Three-way solenoid valve) | CDF-16D(異型鍛件) CDF-16D(Special-shaped forging) |
項目ltem | 參數Parameters |
適用冷媒 Refrigerant | R134a、R1234yf |
最高工作壓力 Maximum Working Pressure | 3.5MPa |
適用環境溫度 Ambient Temperature | -40℃～+125℃ |
額定電壓 Rated Voltage | DC12V/DC24V |
電壓范圍 Voltage Range | 9～16V/18～32V |
濕度范圍 Humidity Range | ＜95%RH |
功率 power | ≤10W |
使用壽命 Operation Life | ≥15萬次 ≥150000 times |
型號 Model | 閥口通徑 Nominal Diameter （mm） | 流阻 Flow Resistance （Kpa） | 閥口泄漏 Leakage at the Valve port (ml/min) | 最小開閥壓差 Minimum Opening Differential Pressure （KPa） | 最高工作壓 Maximum Working Pressure（MPa） | 最大開閥壓差（9V下） Maximum Valve Opening Pressure （@9V）（MPa） |
CDF16D | Φ16 | 5 | ＜100 | 5 | 3.5 | 1.5 |
CDF12D | Φ12 | 6.5 | ＜100 | 0/0 | 3.5 | 1.5 |
CDF12DK | Φ12 | 6.5 | ＜100 | 0/0 | 3.5 | 2.5 |
CDF10D/DK | Φ10 | 17.5 | ＜100 | 0/0 | 3.5 | 2.1 |
CDF06DK | Φ6 | 6.19 | ＜100 | 5 | 3.5 | 2.1 |
CSF10DT | Φ10 | 17.5 | ＜100 | 0/0 | 3.5 | 2.1 |
備注：CDF06DK 系列為高壓液態工況：進口壓力1.5Mpa，進口過冷：5℃，冷媒流量150kg/h
其它系列為高壓氣態工況：進口壓力1.5Mpa，進口過熱度20℃，冷媒流量150kg/h
Remarks: The testing condition of CDF06DK series with high-pressure liquid is that inlet pressure is 1.5MPa, inlet subcooling is 5 ℃, and the refrigerant flow is 150kg/h
The testing condition of Other series with high-pressure gaseous is that inlet pressure is 1.5MPa, inlet superheat is 20 ℃, and the refrigerant flow is 150kg/h
