GATMS-7H0A0系列
附件下載

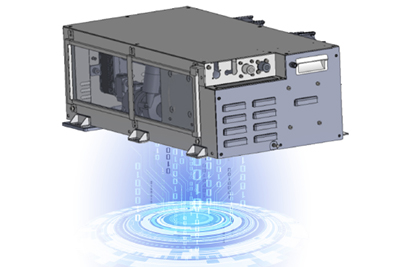

GATMS系列電池?zé)峁芾硐到y(tǒng)具有制冷和加熱功能,能通過與防凍液的熱交換,使動力電池即使在炎熱的夏天和嚴寒的冬天都能工作在適宜的溫度范圍內,延長電池使用壽命,提高電池安全性。

GATMS series battery thermal management system has cooling and heating functions, which can make the power battery work in the appropriate temperature range even in hot summer and cold winter through heat exchange with antifreeze, prolonging battery life and improving battery safety.

產品覆蓋2kw、3kw、5kw7kw,適用于混合動力大巴、純電動大巴、電動工程車、電動重卡及電動物流車等。

Products cover 2kw, 3kw, 5kw and 7kw, suitable for hybrid buses, pure electric buses, electric engineering vehicles, electric heavy trucks and electric logistics vehicles.

(上述內容為GATMS系列整體介紹)

(the above content is the overall introduction of GATMS series)


項目

Item

參數

Parameter

工作環境溫度

Environment temperature

-5℃~55℃

防凍液

Antifreeze

乙二醇+水(體積比)

Glycol + water(volume ratio)

防凍液接口外徑

Antifreeze interface outside diameter

?25±0.5mm / ?20±0.5mm

通訊協議

Protocol

CAN2.0

通訊速率

Communication rate

250kbps / 500kbps

驅動電壓

Drive Voltage

576 V DC(400~750)

控制電壓

Control Voltage

24V DC(18~32)

額定制冷量

Rated Refrigerating capacity

≥7kw

高壓連接器

High Voltage connector

HVRC2P30MS106

Model of plug-in:HVRC2P30FS106S

低壓連接器

Low Voltage connector

AMP 174661-2

Model of plug-in:AMP 174663-2

適用車輛

Adaptable automobile mode

純電動、電動工程車、電動重卡

pure electric、electric engineering vehicles, electric heavy trucks


?
